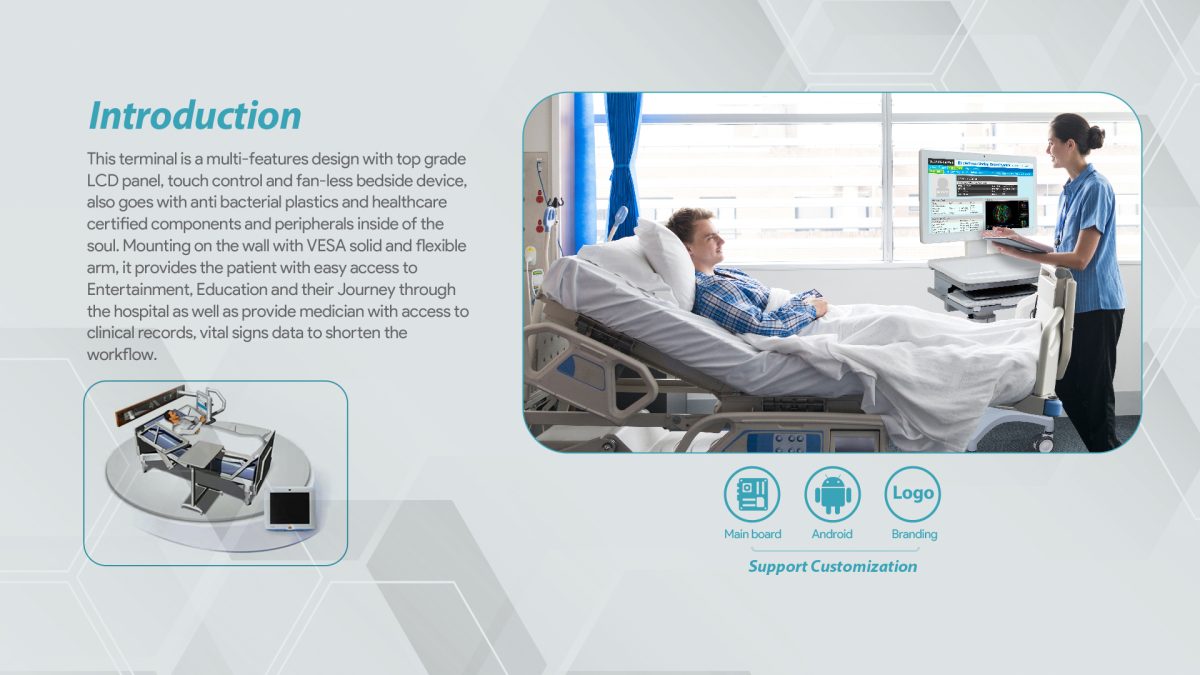

21.5” Bedside Information Terminal for Patient Recovery in Hospitals, Medical Healthcare

  • Rockchip RK3399
  • Mali-T860MP4 600MHz
  • Bluetooth 5.0
  • Wi-Fi 2.4G&5G 802.11a/b/g/n/ac
  • H.265 10bit 4K@60fps decoding
Inquiry

Datasheet

Hardware
Model No. DP02L

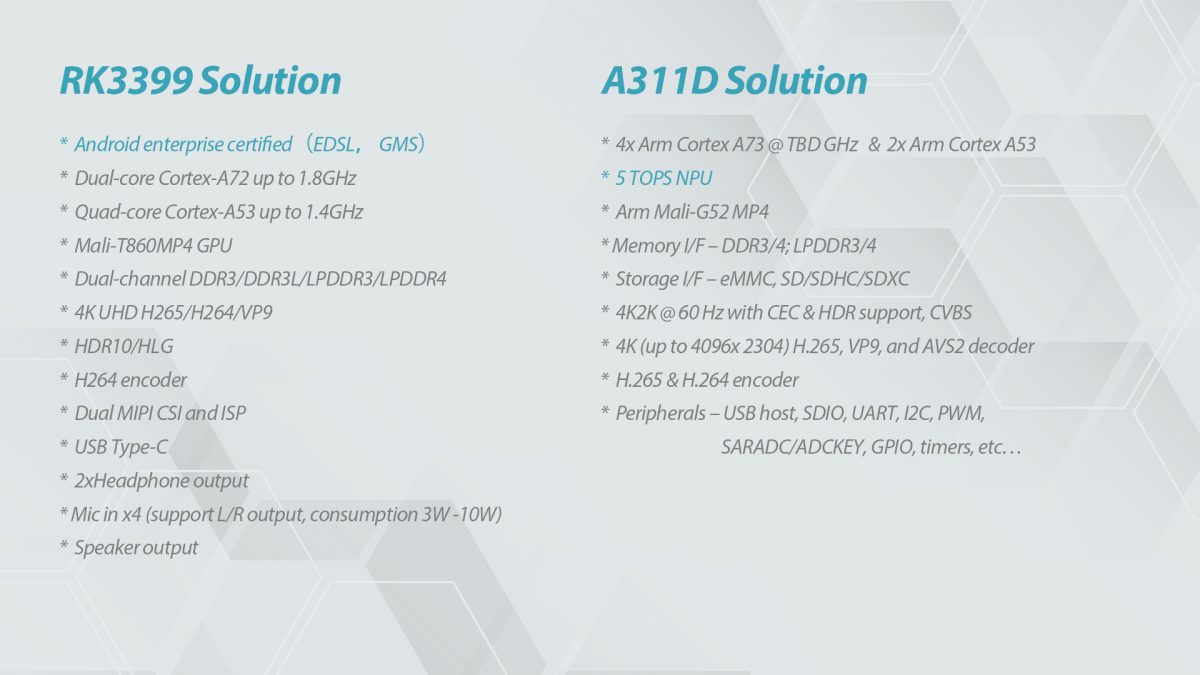

CPU RK3399 ARM Quad-core A53 ,up to 1.4GHz,dual-core A72 up to 1.8GHz
GPU Mali-T860MP4 600MHz
DDR 4GB LPDDR4X (8GB optional)
EMMC 32GB(64GB optional)
WiFi & Bluetooth WiFi 2.4G &5G with BT 5.0
Ethernet 1000M LAN
I/O
DC 12V 3A (2.5 x 5.5 connection)
LAN x 1 RJ45 （POE optional）
USB x 1 USB2.0 (host)
USB x 2 USB3.0
Audilo line in/out x2 Earphones x 2( mic in x1, audio in x2)
On indication light Integrated with logo
Back lighting on/off button Touch panel control inside of plastic case
Volume controls Touch panel control inside of plastic case
Reset Accessed by probe

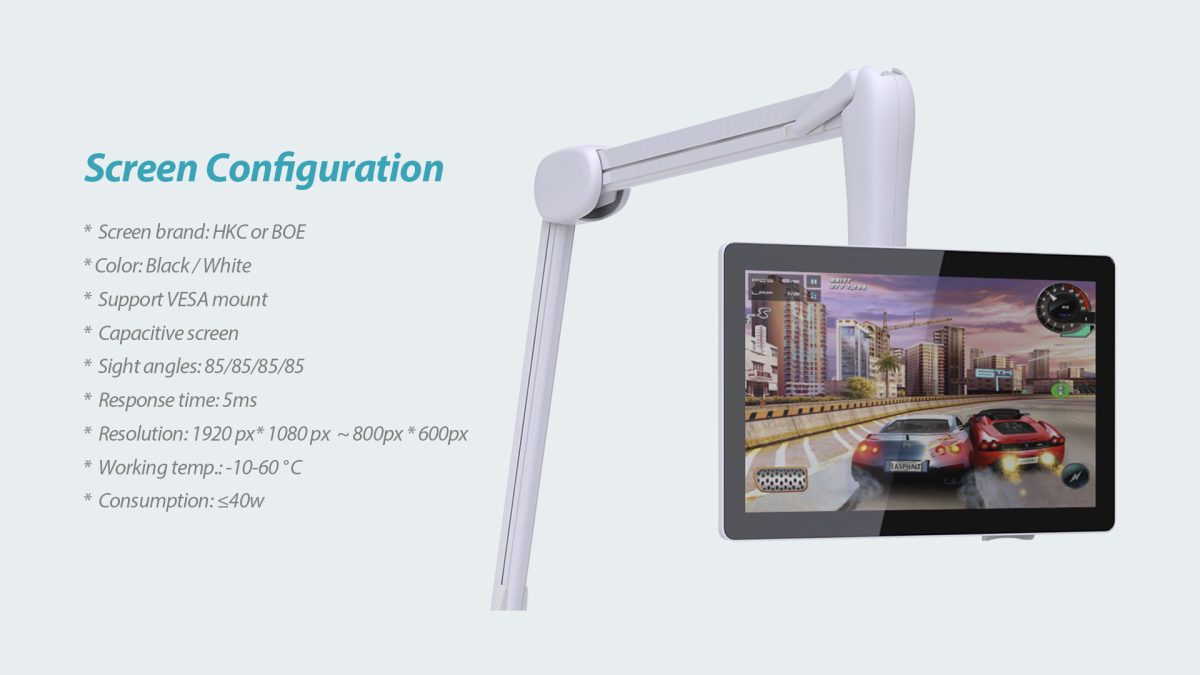

Display Spec.

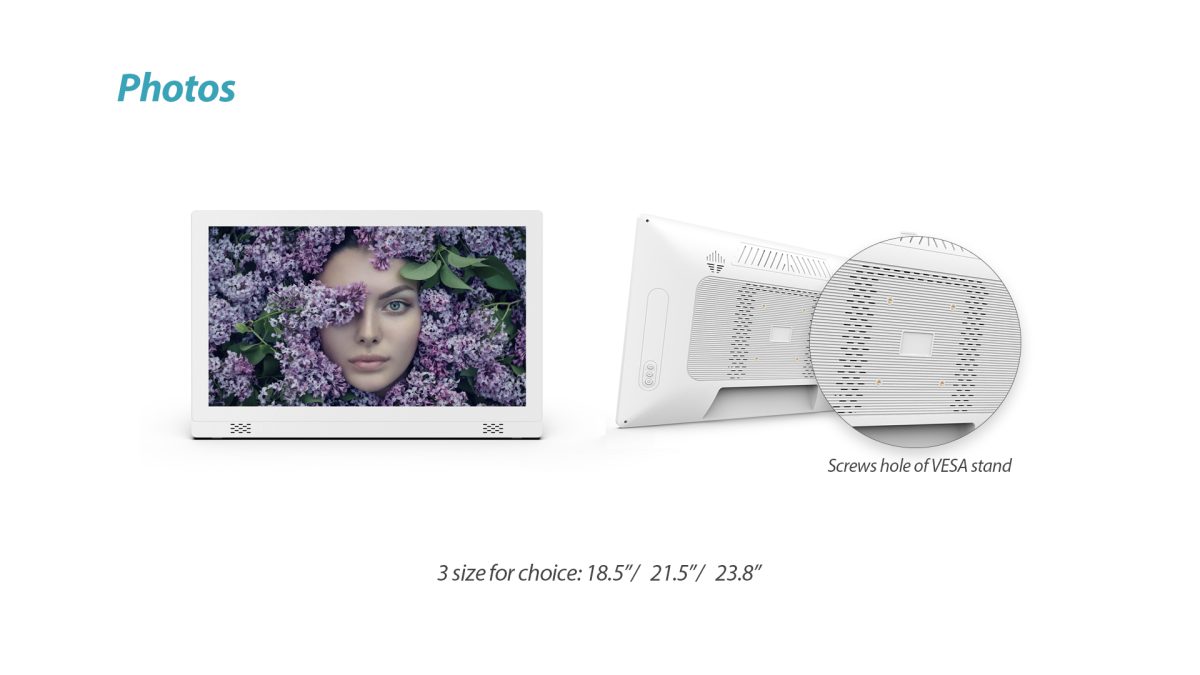

Screen size 21.5" with touch panel
Resolution 1920 x1080 FHD
Touch type P-cap
Aspect ratio 16:9 or 16:10
Screen time 16h/7d
Viewing Angle Min 120° Vertical 120° Horizontal
Camera 8 MP; Green when in use
Speaker 2x3W
Microphone Built in
Software
OS AOSP Android 11
Video H.265 10-bit 4K*2K@60fps, H.264 AVC/MVC 4K*2K@30fps, VP9, AVS+, MPEG1/2/4 ASP, WMV/VC-1, RealVideo8/9/10
Audio MPEG1/2/4, MP3, AAC/AAC+, WMA/WMA-pro, FLAC, OGG , AC3
Hospital Software Service Optional
DRM(optional) Widevine L1/HDCP 2.2 supported
Hardware
Model No. DP02L
CPU RK3399 ARM Quad-core A53 ,up to 1.4GHz,dual-core A72 up to 1.8GHz
GPU Mali-T860MP4 600MHz
DDR 4GB LPDDR4X (8GB optional)
EMMC 32GB(64GB optional)
WiFi & Bluetooth WiFi 2.4G &5G with BT 5.0
Ethernet 1000M LAN
I/O
DC 12V 3A (2.5 x 5.5 connection)
LAN x 1 RJ45 （POE optional）
USB x 1 USB2.0 (host)
USB x 2 USB3.0
Audilo line in/out x2 Earphones x 2( mic in x1, audio in x2)
On indication light Integrated with logo
Back lighting on/off button Touch panel control inside of plastic case
Volume controls Touch panel control inside of plastic case
Reset Accessed by probe
Display Spec.
Screen size 21.5" with touch panel
Resolution 1920 x1080 FHD
Touch type P-cap
Aspect ratio 16:9 or 16:10
Screen time 16h/7d
Viewing Angle Min 120° Vertical 120° Horizontal
Camera 8 MP; Green when in use
Speaker 2x3W
Microphone Built in
Software
OS AOSP Android 11
Video H.265 10-bit 4K*2K@60fps, H.264 AVC/MVC 4K*2K@30fps, VP9, AVS+, MPEG1/2/4 ASP, WMV/VC-1, RealVideo8/9/10
Audio MPEG1/2/4, MP3, AAC/AAC+, WMA/WMA-pro, FLAC, OGG , AC3
Hospital Software Service Optional
DRM(optional) Widevine L1/HDCP 2.2 supported

Frequently Asked Questions

The minimum quantity is 1000pcs.
The most cost-effective MOQ is 3000pcs, because this quantity reduces the break bulk distribution cost in comparison with the Qty of 1000pcs.

Quality:
Quality is our culture, every product from us has to go through at least 9 times of inspection before being offered to you. These inspections are incoming inspection, QA inspection, assembly line online test, patrol inspection, dust removal test,  aging test,  FQC test, enhanced dust removal test, and Package inspection. All products are 100% tested and approved.

Warranty:
DataMax with a 1 year warranty for the whole device.
We provide 0.3%~1% spare parts for after-sales service on the client’s side.

We usually give you a quotation within 48 hours after getting your inquiry during the workday.
If you are in a hurry to inquire, please contact us by Email/Teams/WhatsApp/WeChat/Phone directly. You can find all our sales contact information on every page.

Samples order is highly welcome for quality evaluation if needed. We have stock that we can ship you immediately, it takes 7-15 days to reach you.

For the new order, it usually takes 30-35 days for production.
For the duplicated order, 15-21 days would complete the production.

For the artwork, you can customize the giftbox, logo on device or RCU, bottom sticker, carton box.
For the software, you can redefine the model number, language & timezone by default, pre-installed apps, launcher replacement(if it’s necessary)

Yes, we can. DataMax is a leading national high-tech enterprise and a 12-year ODM/OEM manufacturer in the industry of Android-based products. Our rich R&D experiences over a decade have shaped us into a great product maker with a deep understanding of the product definition and problem solver when after-sales issues occur.

We usually ship orders according to customers’ demand. If customers don’t have the shipment channels, we will use our reliable shipping agent who has been cooperating with us for over 10 years. The shipping period depends on the shipping methods. Welcome to inquire with us for more about this.

We have refund policy for every projector:
1) If the product is damaged due to external forces or human factors, we will not be responsible for refunds.
2) We guarantee 100% replacement for the extra faulty devices if the defective quantity exceeds the spare parts we provided.

If you have questions about after-sales service, please contact us anytime.

We usually accept T/T for bank transfer, 30% deposits before mass production, 70% balance payment before the order shipment.
