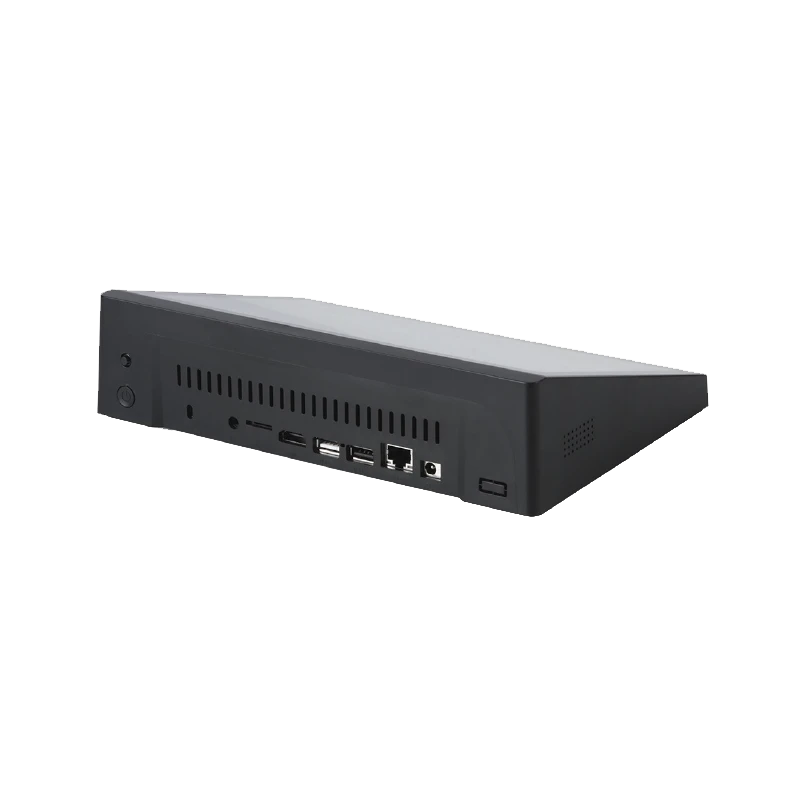

8"/ 10.1" Desktop Digital Signage for Interactive Kiosks in Banks, Government & Hospitality

8″/ 10.1″ Desktop Digital Signage for Interactive Kiosks in Banks, Government & Hospitality

Rockchip RK3562
1920*1200 | 1280*800
TF card*1 , USB2.0*2 , HDMI out*1 , earphone*1, 12V DC*1
Dualband 2.4G&5G WiFi 6 with Bluetooth 5.4 (optional)
Android 14

Datasheet

Hardware
Model No.	DP810U
CPU	RK3562 Quad-Core ARM Cortex-A53 up to 1.2 GHz
GPU	ARM Mali-G52 1-Core-1EE, Support OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.2
DDR	2GB (4GB optional)
EMMC	16GB
WiFi & Bluetooth	WiFi 2.4G &5G with BT 5.0
Ethernet	100M LAN
I/O
DC	12V/2A
RJ45	100M LAN x1
TF card slot	x2, Support up to 128GB
USB 2.0	High speed 2.0 x2
Earphone output	3.5mm mini jack x1
HDMI output	x1
Display Spec.
Resolution	1280×800 \| 1920×1200
Touch type	Capacitive touch screen
Aspect ratio	16:9
Screen time	16h/7d
Speaker	1x3W
Software
OS	AOSP Android 11
Multimedia	* H.265 / HEVC up to 4K@60fps* H.264/AVC/VP9 up to 1080P@60fps* MPEG-1/2/4, VC-1, MJPEG supported

Hardware
Model No.	DP810U
CPU	RK3562 Quad-Core ARM Cortex-A53 up to 1.2 GHz
GPU	ARM Mali-G52 1-Core-1EE, Support OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.2
DDR	2GB (4GB optional)
EMMC	16GB
WiFi & Bluetooth	WiFi 2.4G &5G with BT 5.0
Ethernet	100M LAN
I/O
DC	12V/2A
RJ45	100M LAN x1
TF card slot	x2, Support up to 128GB
USB 2.0	High speed 2.0 x2
Earphone output	3.5mm mini jack x1
HDMI output	x1
Display Spec.
Resolution	1280×800 \| 1920×1200
Touch type	Capacitive touch screen
Aspect ratio	16:9
Screen time	16h/7d
Speaker	1x3W
Software
OS	AOSP Android 11
Multimedia	* H.265 / HEVC up to 4K@60fps* H.264/AVC/VP9 up to 1080P@60fps* MPEG-1/2/4, VC-1, MJPEG supported

Frequently Asked Questions

The minimum quantity is 1000pcs.
The most cost-effective MOQ is 3000pcs, because this quantity reduces the break bulk distribution cost in comparison with the Qty of 1000pcs.

Quality:
Quality is our culture, every product from us has to go through at least 9 times of inspection before being offered to you. These inspections are incoming inspection, QA inspection, assembly line online test, patrol inspection, dust removal test, aging test, FQC test, enhanced dust removal test, and Package inspection. All products are 100% tested and approved.

Warranty:
DataMax with a 1 year warranty for the whole device.
We provide 0.3%~1% spare parts for after-sales service on the client’s side.

We usually give you a quotation within 48 hours after getting your inquiry during the workday.
If you are in a hurry to inquire, please contact us by Email/Teams/WhatsApp/WeChat/Phone directly. You can find all our sales contact information on every page.

Samples order is highly welcome for quality evaluation if needed. We have stock that we can ship you immediately, it takes 7-15 days to reach you.

For the new order, it usually takes 30-35 days for production.
For the duplicated order, 15-21 days would complete the production.

For the artwork, you can customize the giftbox, logo on device or RCU, bottom sticker, carton box.
For the software, you can redefine the model number, language & timezone by default, pre-installed apps, launcher replacement(if it’s necessary)

Yes, we can. DataMax is a leading national high-tech enterprise and a 12-year ODM/OEM manufacturer in the industry of Android-based products. Our rich R&D experiences over a decade have shaped us into a great product maker with a deep understanding of the product definition and problem solver when after-sales issues occur.

We usually ship orders according to customers’ demand. If customers don’t have the shipment channels, we will use our reliable shipping agent who has been cooperating with us for over 10 years. The shipping period depends on the shipping methods. Welcome to inquire with us for more about this.

We have refund policy for every projector:
1) If the product is damaged due to external forces or human factors, we will not be responsible for refunds.
2) We guarantee 100% replacement for the extra faulty devices if the defective quantity exceeds the spare parts we provided.

If you have questions about after-sales service, please contact us anytime.

We usually accept T/T for bank transfer, 30% deposits before mass production, 70% balance payment before the order shipment.
