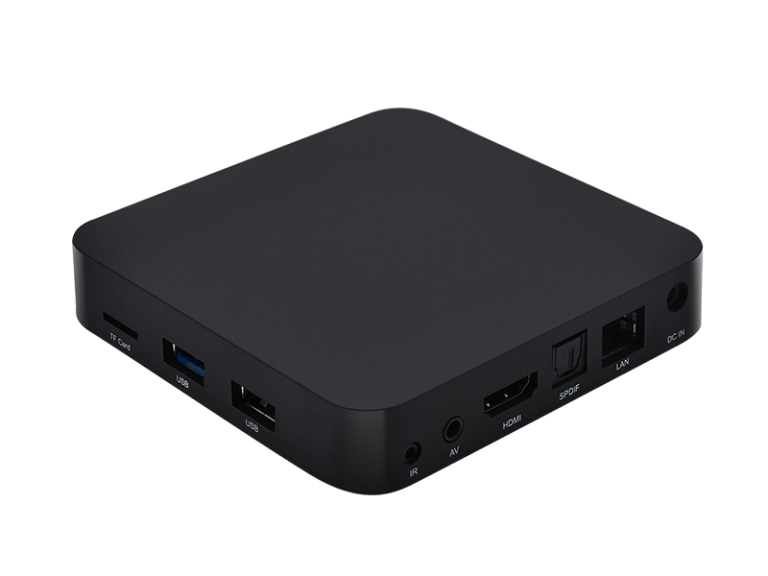

PURE OTT ANDROID TV/LINUX BOX BASED ON AMLOGIC S905X3 - DM12
DM12 is a quad core pure OTT box with androidtv™ 9.0 based on Amlogic chipset, which is a certified model. It supports dolby digital and up to 4k resolution to provide an audiovisual experience. The most useful features are Chromecast build-in and voice search control. It supports all kinds of official apps for TV version such as YouTube, Prime Video, Google Movie, Google Music, Google PlayStore, etc.
DATASHEET
DESCRIPTION
DATASHEET
| HARDWARE | |
|---|---|
| CPU | Quad-Core 64-bit Cortex-A53 up to 2.0GHz |
| GPU | Mali-G31 MP2 Vulkan 1.0, OpenGL ES 3.2 |
| DDR3 | DDRIII 1GB or 2GB |
| Flash | 8GB or 16GB EMMC |
| WiFi | 802.11 b/g /n ( 2.4G) , Dual band optional |
| Bluetooth 5.0 | Included |
| Bluetooth RCU | Optional |
| Color | Black |
| Power | DC input 5V/2A |
| SOFTWARE | |
|---|---|
| OS | Android 9 / Ubuntu |
| Video/Picture encode | UHD 4K 60fps HW decode,FHD 1080P 60fps,H.265 10-bit, H.264,VC-1,MPEG1/2/4 AVS+,VP8/VP9 HW decode |
| Audio decode/encode | MP3,AAC,WMA,RM,FLAC,OGG,AC-3, Dolby |
| Language | Multi-language |
| DRM | PlayReady/Widevine/HDCP 2.2 |
| I/O | |
|---|---|
| 1* HDMI | Up to 4K |
| 2* USB | USB 3.0*1, USB 2.0*1 |
| 1* Ethernet | RJ45 |
| 1* IR Sensor | For IR extended function |
| 1* Optical | S/PDIF |
| 1* AV output | Mini jack |
| 1* Power input | 5V/2A |
| ACCESSORIES | |
|---|---|
| Gift box | √ |
| Power cable | √ |
| HDMI adapter cable | √ |
| Remote control | √ |
| User Manual | √ |
