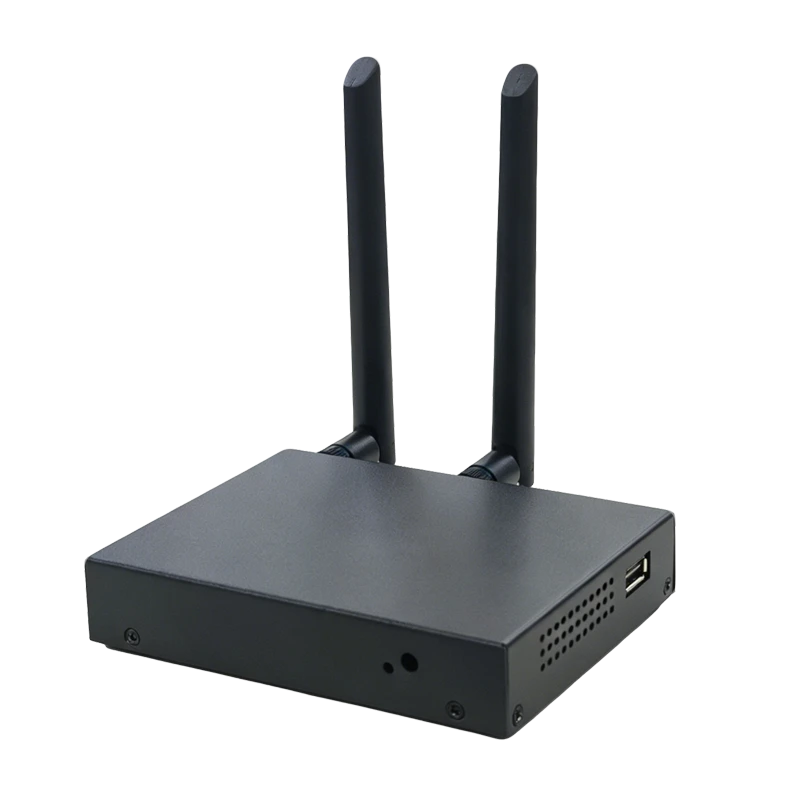

DataMax DM33DS 5G/4G LTE Media Player for Outdoor Digital Signage Industrial-grade stability for 24/7 continuous operation

  • Allwinner H618 Quad Core ARM Cortex A53
  • G31 MP2, Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0
  • Bluetooth 5.4
  • Wi-Fi 6 (2.4 & 5 GHz) 2×2
  • H.265 4K@60fps decoding
Inquiry
compatible with youtube logo
disney plus compatible logo

Datasheet

Hardware
Model No. DM33DS
CPU Allwinner H618Quad Core ARM Cortex A53
GPU G31 MP2, Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0
DDR4 2GB(4GB optional)
eMMC 16GB(32GB optional)
WiFi & Bluetooth WiFi6 802.11 a/b/g/n/ac/ax 2.4G&5G 2T2R
LTE CAT1 Module(4G SIM) Quectel EG915N series
Supported Bandwidth • EG915N-EU
– LTE-FDD: B1/ 3/ 7/ 8/ 20
– LTE-TDD: –
– GSM: B3/ 8
– GNSS(Optional): GPS/ GLONASS/ Galileo/ BDS/ QZSS

• EG915N-LA
– LTE-FDD: B2/ 3/ 4/ 5/ 7/ 8/ 28/ 66
– LTE-TDD: B40
– GSM: B2/ 3/ 5/ 8
– GNSS(Optional): GPS/ GLONASS/ Galileo/ BDS/ QZSS

• EG915N-EA
– LTE-FDD: B1/ 3/ 5/ 7/ 8/ 20/ 28
– LTE-TDD: B38/ 40/ 41
– GSM: B3/ 8
– GNSS(Optional): GPS/ GLONASS/ Galileo/ BDS/ QZSS
Connection
Power Suply 2 x Type-C (1 x 5V/2A power, 1 x high speed data transfer)
HDMI Output 1 x HDMI 2.0b
SIM Card Slot 1 x 4G SIM data supported(5G optional)
Software
OS AOSP Android 14
Apps Download Apps download freely from Playstore
Voice Search Optional
Media
Video Decoding • Supports H.265 – 8K@24fps & H.264/VP9/AVS2- 4K@30fps
• Supports multi-formats:
– H.265 Main10@L5.1 up to 4K@60fps
– VP9 Profile 2 up to 4K@30fps
– AVS2 JiZhun 10bit Profile up to 4K@30fps
– H.264 BP/MP/HP@L4.2 up to 4K@30fps
– H.263 BP up to 1080p@60fps
– MPEG-4 SP/ASP@L5 up to 1080p@60fps
– MPEG-2 MP/HL up to 1080p@60fps
– MPEG-1 MP/HL up to 1080p@60fps
– Xvid up to 1080p@60fps
– Sorenson Spark up to 1080p@60fps
– VP8 up to 1080p@60fps
– AVS/AVS+ JiZhun Profile up to 1080p@60fps
– WMV9/VC1 SP/MP/AP up to 1080p@60fps
Audio Decoding Supports MP3, AAC, WMA, RM, FLAC, Ogg
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
Packing List
Carton Size 360(L)*355(W)*235(H)mm, 20pcs
Carton G.W. 11KG
Product Size 130(L)*85(W)*20(H)mm
Giftbox Size 170(L)*110(W)*68(H)mm
Accessories 1*User Manual, 1*Type-C cable, 1*HDMI extender, 1*BT RCU (Adaptor optional)
Hardware
Model No. DM33DS
CPU Allwinner H618Quad Core ARM Cortex A53
GPU G31 MP2, Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0
DDR4 2GB(4GB optional)
eMMC 16GB(32GB optional)
WiFi & Bluetooth WiFi6 802.11 a/b/g/n/ac/ax 2.4G&5G 2T2R
LTE CAT1 Module(4G SIM) Quectel EG915N series
Supported Bandwidth • EG915N-EU
– LTE-FDD: B1/ 3/ 7/ 8/ 20
– LTE-TDD: –
– GSM: B3/ 8
– GNSS(Optional): GPS/ GLONASS/ Galileo/ BDS/ QZSS

• EG915N-LA
– LTE-FDD: B2/ 3/ 4/ 5/ 7/ 8/ 28/ 66
– LTE-TDD: B40
– GSM: B2/ 3/ 5/ 8
– GNSS(Optional): GPS/ GLONASS/ Galileo/ BDS/ QZSS

• EG915N-EA
– LTE-FDD: B1/ 3/ 5/ 7/ 8/ 20/ 28
– LTE-TDD: B38/ 40/ 41
– GSM: B3/ 8
– GNSS(Optional): GPS/ GLONASS/ Galileo/ BDS/ QZSS
Connection
Power Suply 2 x Type-C (1 x 5V/2A power, 1 x high speed data transfer)
HDMI Output 1 x HDMI 2.0b
SIM Card Slot 1 x 4G SIM data supported(5G optional)
Software
OS AOSP Android 14
Apps Download Apps download freely from Playstore
Voice Search Optional
Media
Video Decoding • Supports H.265 – 8K@24fps & H.264/VP9/AVS2- 4K@30fps
• Supports multi-formats:
– H.265 Main10@L5.1 up to 4K@60fps
– VP9 Profile 2 up to 4K@30fps
– AVS2 JiZhun 10bit Profile up to 4K@30fps
– H.264 BP/MP/HP@L4.2 up to 4K@30fps
– H.263 BP up to 1080p@60fps
– MPEG-4 SP/ASP@L5 up to 1080p@60fps
– MPEG-2 MP/HL up to 1080p@60fps
– MPEG-1 MP/HL up to 1080p@60fps
– Xvid up to 1080p@60fps
– Sorenson Spark up to 1080p@60fps
– VP8 up to 1080p@60fps
– AVS/AVS+ JiZhun Profile up to 1080p@60fps
– WMV9/VC1 SP/MP/AP up to 1080p@60fps
Audio Decoding Supports MP3, AAC, WMA, RM, FLAC, Ogg
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
Packing List
Carton Size 360(L)*355(W)*235(H)mm, 20pcs
Carton G.W. 11KG
Product Size 130(L)*85(W)*20(H)mm
Giftbox Size 170(L)*110(W)*68(H)mm
Accessories 1*User Manual, 1*Type-C cable, 1*HDMI extender, 1*BT RCU (Adaptor optional)

Frequently Asked Questions

The minimum quantity is 1000pcs.
The most cost-effective MOQ is 3000pcs, because this quantity reduces the break bulk distribution cost in comparison with the Qty of 1000pcs.

Quality:
Quality is our culture, every product from us has to go through at least 9 times of inspection before being offered to you. These inspections are incoming inspection, QA inspection, assembly line online test, patrol inspection, dust removal test,  aging test,  FQC test, enhanced dust removal test, and Package inspection. All products are 100% tested and approved.

Warranty:
DataMax with a 1 year warranty for the whole device.
We provide 0.3%~1% spare parts for after-sales service on the client’s side.

We usually give you a quotation within 48 hours after getting your inquiry during the workday.
If you are in a hurry to inquire, please contact us by Email/Teams/WhatsApp/WeChat/Phone directly. You can find all our sales contact information on every page.

Samples order is highly welcome for quality evaluation if needed. We have stock that we can ship you immediately, it takes 7-15 days to reach you.

For the new order, it usually takes 30-35 days for production.
For the duplicated order, 15-21 days would complete the production.

For the artwork, you can customize the giftbox, logo on device or RCU, bottom sticker, carton box.
For the software, you can redefine the model number, language & timezone by default, pre-installed apps, launcher replacement(if it’s necessary)

Yes, we can. DataMax is a leading national high-tech enterprise and a 12-year ODM/OEM manufacturer in the industry of Android-based products. Our rich R&D experiences over a decade have shaped us into a great product maker with a deep understanding of the product definition and problem solver when after-sales issues occur.

We usually ship orders according to customers’ demand. If customers don’t have the shipment channels, we will use our reliable shipping agent who has been cooperating with us for over 10 years. The shipping period depends on the shipping methods. Welcome to inquire with us for more about this.

We have refund policy for every projector:
1) If the product is damaged due to external forces or human factors, we will not be responsible for refunds.
2) We guarantee 100% replacement for the extra faulty devices if the defective quantity exceeds the spare parts we provided.

If you have questions about after-sales service, please contact us anytime.

We usually accept T/T for bank transfer, 30% deposits before mass production, 70% balance payment before the order shipment.
